Helical coil heat exchanger design (HCHex) software demonstrates the thermal design calculations for helical coil heat exchanges. This is done by going through a series of calculations to produce the final outcome that includes the exchanger area, length, number of spiral windings for tube along with any missing flow rates temperatures…etc. The software will also calculate the heat transfer coefficients.  HCHex will generate a summary of all results.

Below are some features for this software along with any limitations.

Software feature

  • Design helical coil heat exchangers, choose between two models. Model 1 With core tube and coiled tube inside vessel or Model 2 without core tube and only contains a coiled tube inside vessel
  • Support S.I Units and English (U.S) Units of measurement.
  • Units converter includes 23 measurements units with 200-unit conversion
  • Nusselt number estimation
    Helical coil heat exchanger design software includes Nusselt number correlations and will also allow you to use your own correlations in three formats.
  • The software will also allow you to enter your own Nusselt number or enter a heat transfer coefficient if needed.
  • Area and heat load (heat duty) calculations
  • The software will also accept heat load as input and calculate the other needed variables.
  • Vessel dimensions including Height, width and internals.
  • Number of spiral turns for the helical tube and its length.
  • Add your own Nusselt correlation
  • Save/Load results
  • Ability to calculate unknown Cold or Hot side temperatures. Unknown exit temperatures on both sides or any two temperatures on both sides
  • Unknown Flow rate on either hot or cold side, or both flow rates providing heat duty and temperatures are specified.
  • Pressure Drops for both shell and tube sides (frictional, inlet, outlet and total)
  • Overall heat transfer coefficients, heat transfer coefficients for shell and tube sides.
  • Plot temperature profile for counter current flow and co-current flow. detect temperature cross.
  • Export Results summary to Microsoft Excel Engineering Datasheet format. Save/Load results. Generate/Print a summary of results
  • Display multiple cases in results grid
  • Export Results summary to .rtf file format that can be opened in Microsoft Word

Included Databases

  • Estimate the Physical properties of pure components for more than 1450 fluids; the database has the ability to estimate Thermal Conductivity, Density, Heat Capacity and Viscosity. The database also included critical properties, boiling and melting points and come as a standalone interface but easily integrated with the software.
    + Estimate mixture properties. (ALL ESTIMATION METHODS CURRENTLY SUPPORT LIQUIDS ONLY)
  • User database functions to allow user to add/delete fluids, Tube geometric sizes and heat transfer coefficients and load to hot/cold side (Empty database!).
  • Fouling factors
  • Add your own Nusselt number correlations, three formats are available.

Other Option for physical properties (Sold Separately)

Limitations

  • Single coiled tube units, multi coiled tubes are not supported.

Download

Click here to download the demo version of the product. Please also note that the demo version of this software will only operate with set examples which are restricted in our demo version.  The full version of this product does not have any restrictions. Also note the demo version may not include the latest updates that are incorporated in the full version. See version history of the full version for details.

We don’t offer a fully working demo version.

Demo Video Clips

To watch the video clips on this website please click here

To watch on YouTube

Features and interface Video Click here

Demonstration Example 1 – Click here | Demonstration Example 2 – Click here | Demonstration Example 3 – Click here (Latest video – showing no core tube in the vessel design)

Screenshot

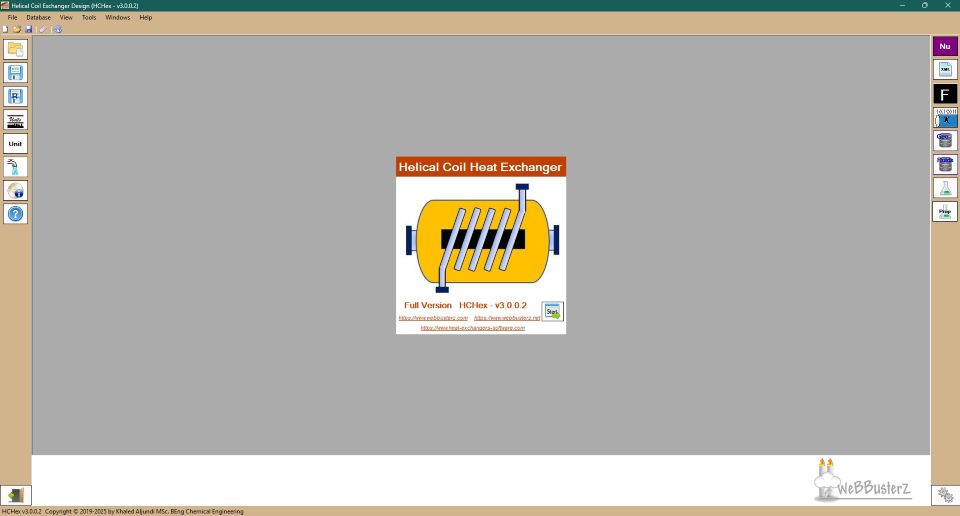

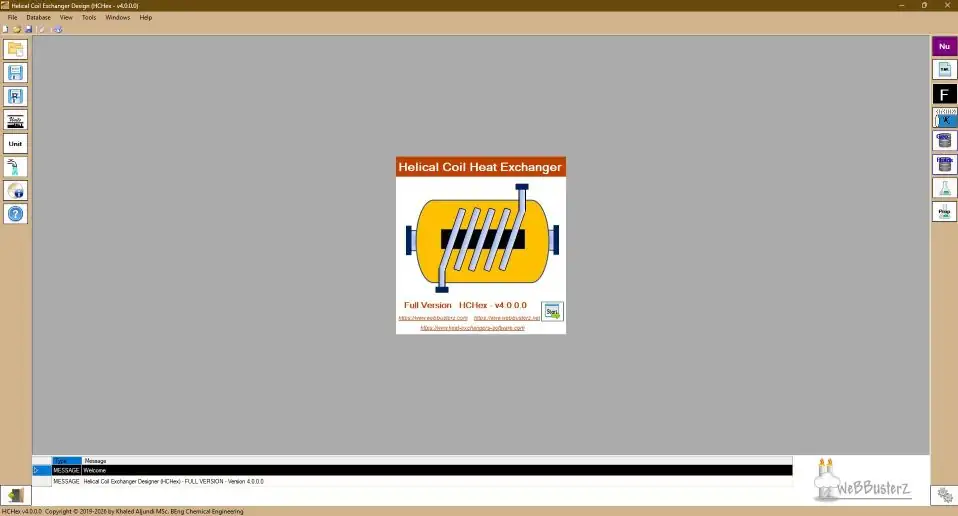

Below is a screen shot of the main software screen, for more screen shots please visit the screen shots page

helical coil heat exchanger design software

System Requirements

Helical coil heat exchanger software (HCHex) needs the following to operate:

1. Microsoft Windows operating system
2. 64 MB RAM
3. 30 MB free disk space
4. Microsoft Dot Net 4.8.1 Framework

Windows platform:
Windows 11
32 bit & 64 bit operating systems.
